Simac 20 U



Flatbed zig-zag machine

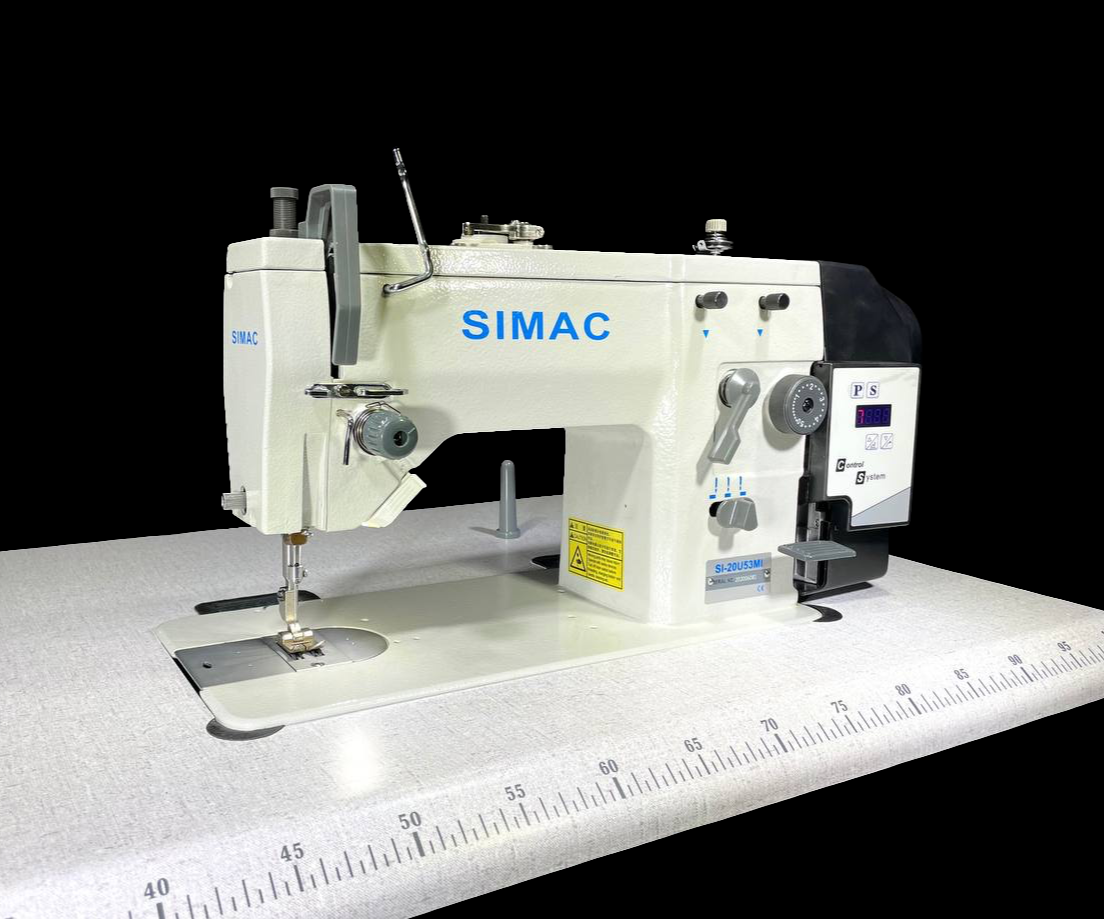

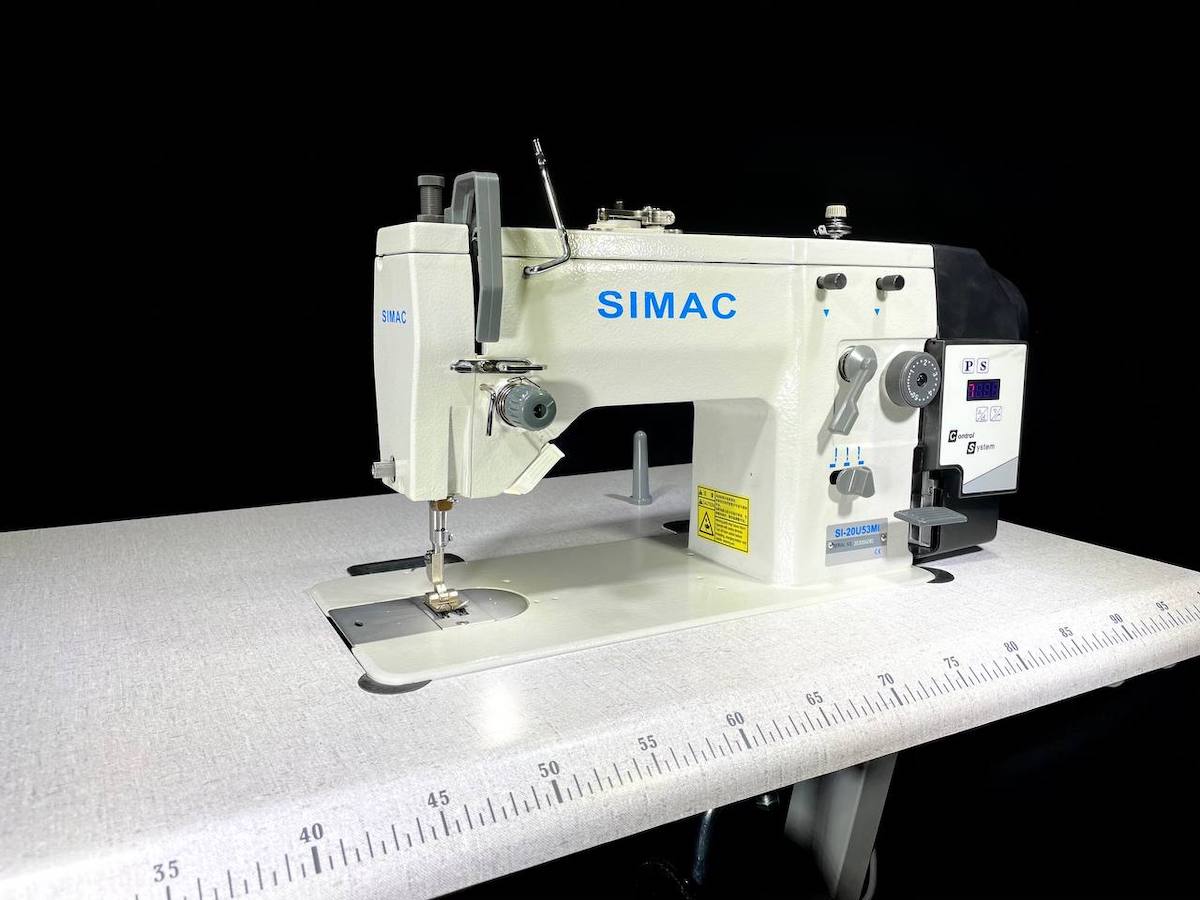

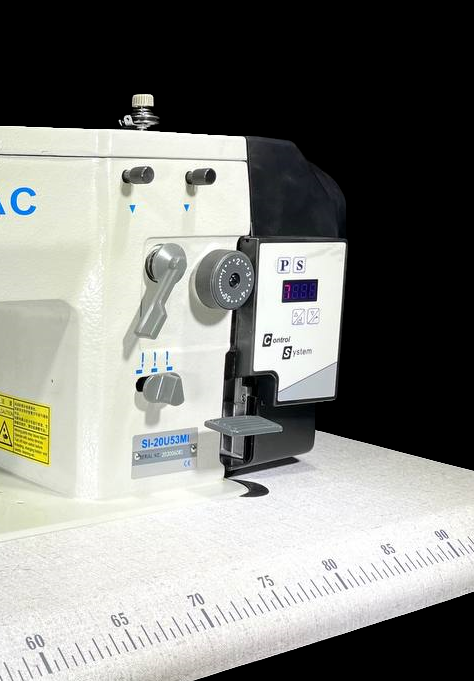

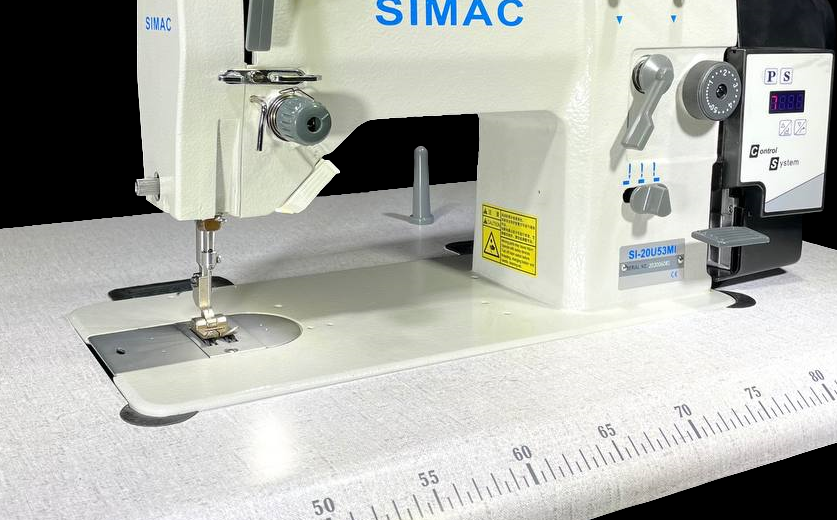

The Simac 20U MI is a Zig-Zag flatbed machine with 10 mm maximum zig-zag width and 6 mm stitch length, equipped with integrated motor, panel for speed and parameter adjustment, LED light and integrated positioner for needle position control
All the zig-zag machines of the Simac series also have the following characteristics:

  • machine for universal artisan use
  • control elements within reach and easy to use
  • winder unit integrated in the machine head and clearly visible by the operator
  • forward and reverse direction that can be adjusted separately
  • standard accessories supplied with the machine
Type
Needle system
Maximum speed stitching
Stitch lenght
Max foot height
Max zig-zag width
Integrated motor
SI 20U 53 MI
134R
2000
5
6
0-10
SI 20U 53
134R
1800
5
6
0-9
SI 20U 63
134R
1800
5
6
0-12
